Shandong project

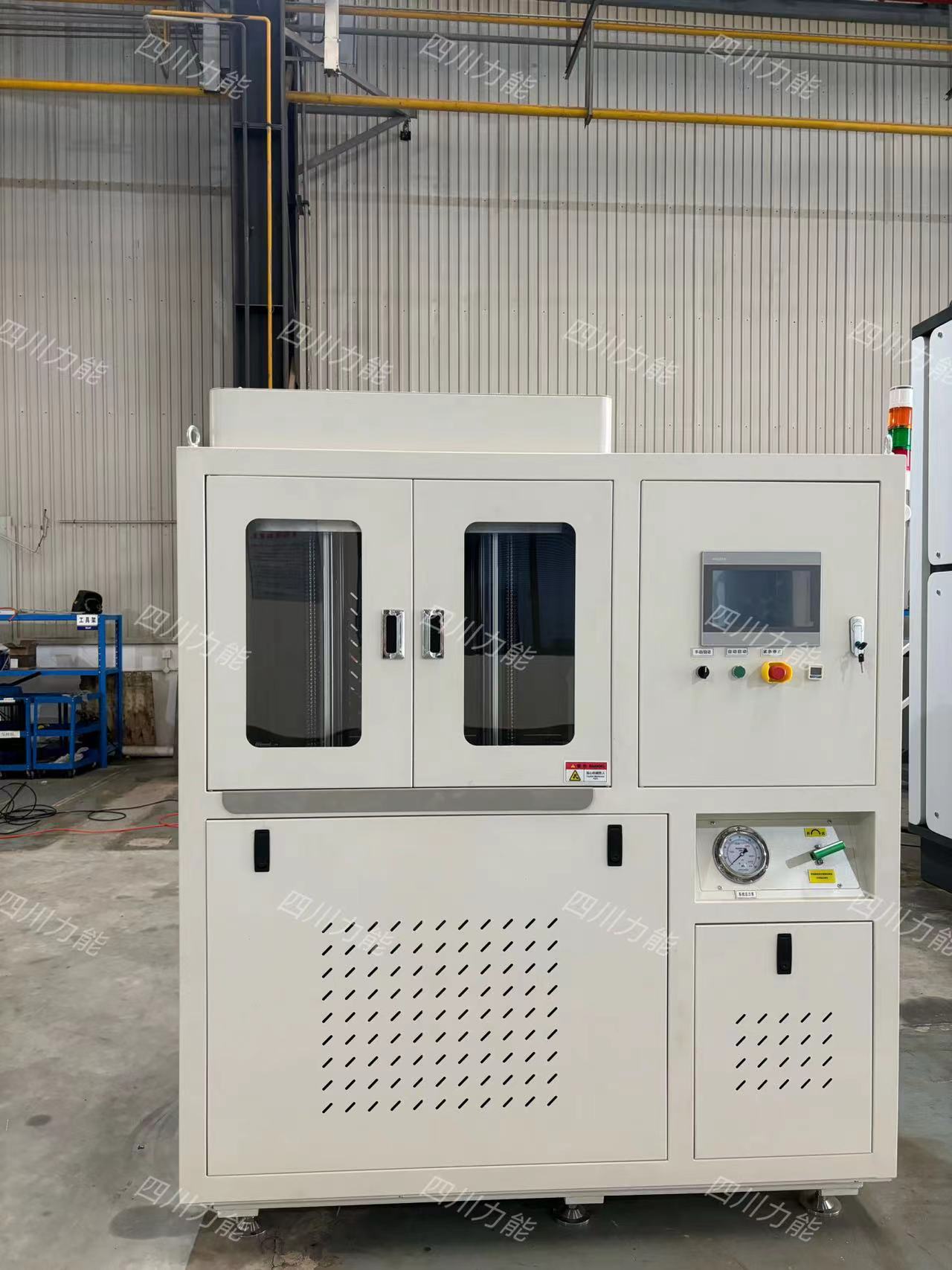

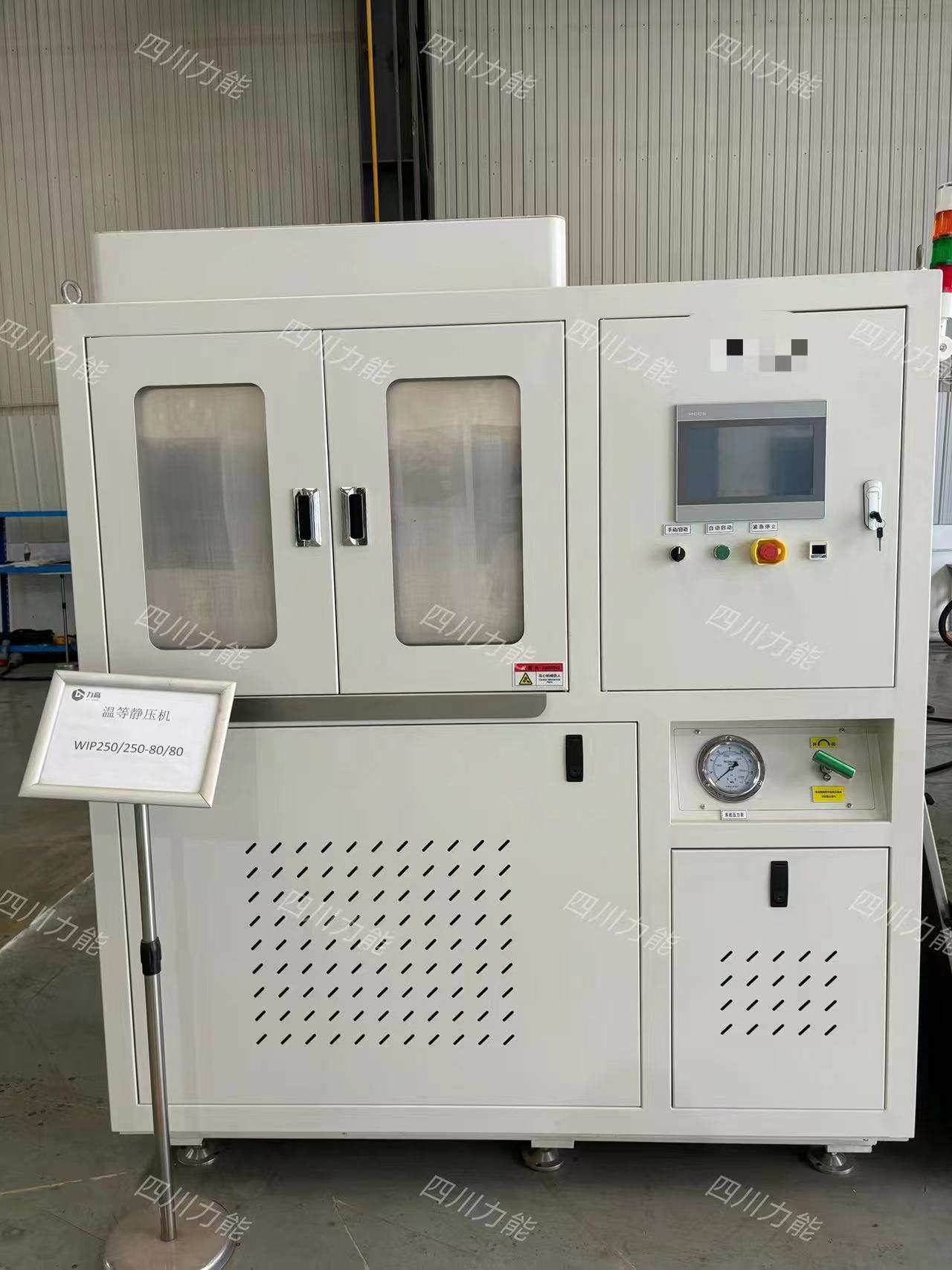

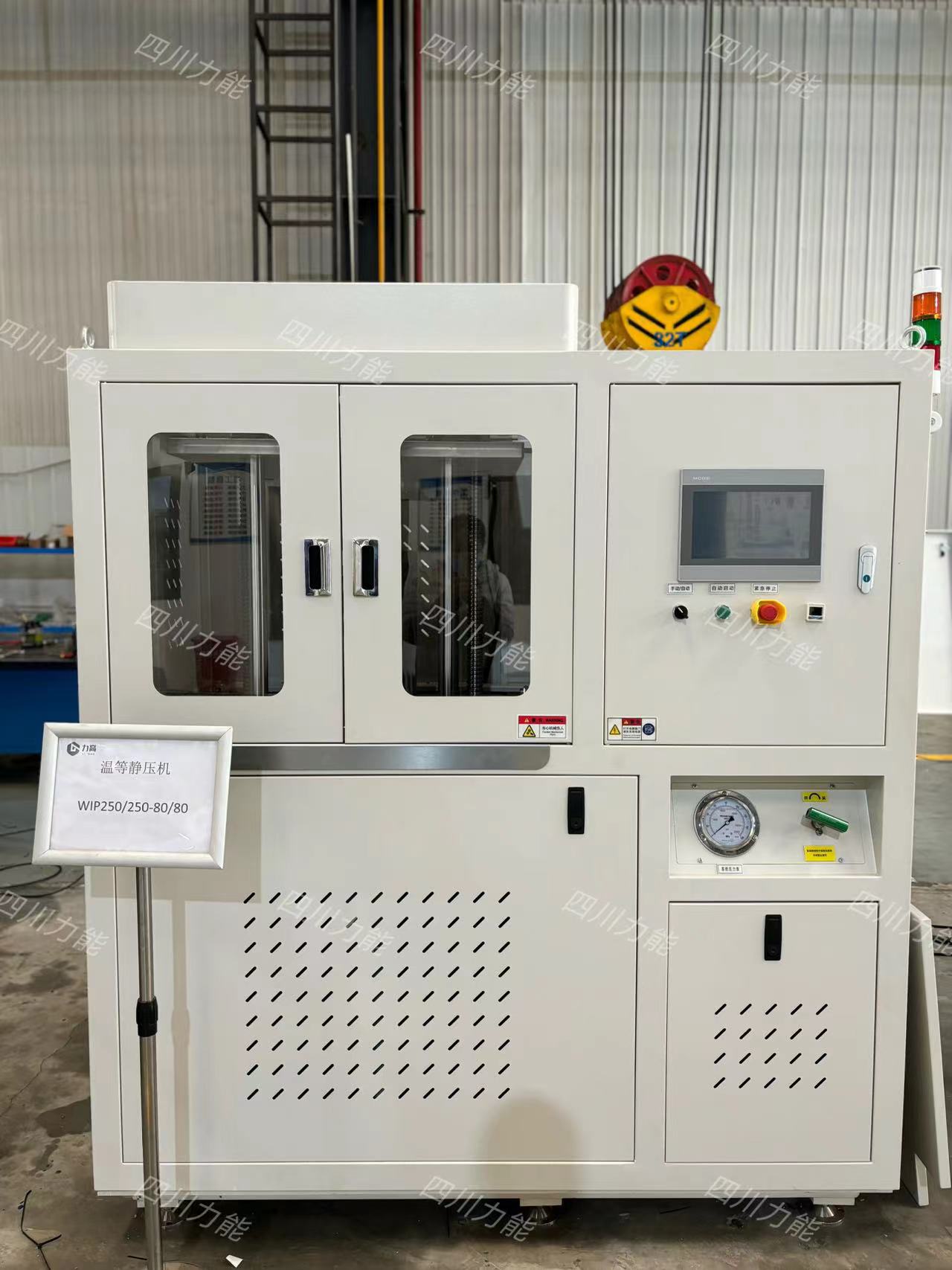

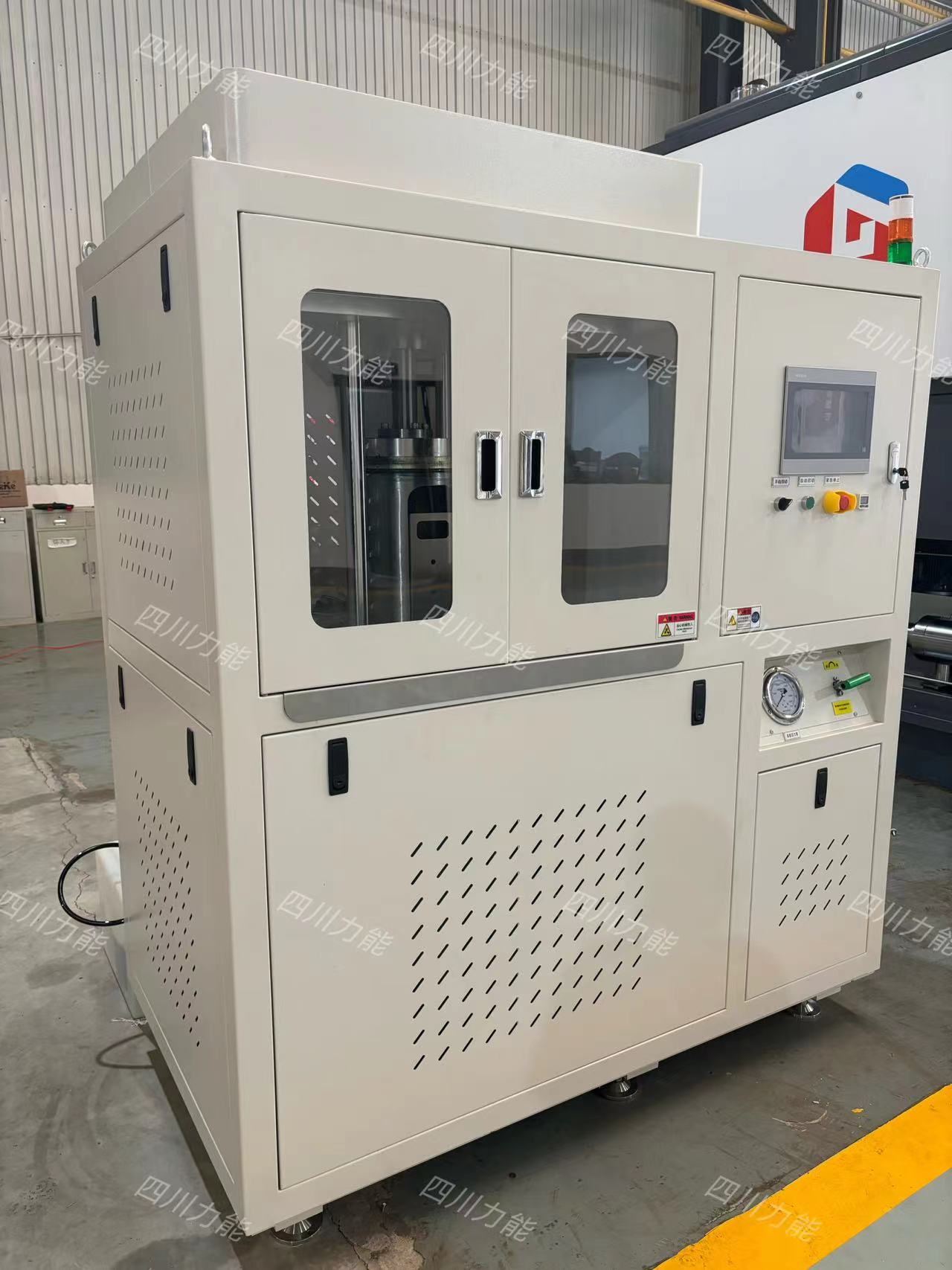

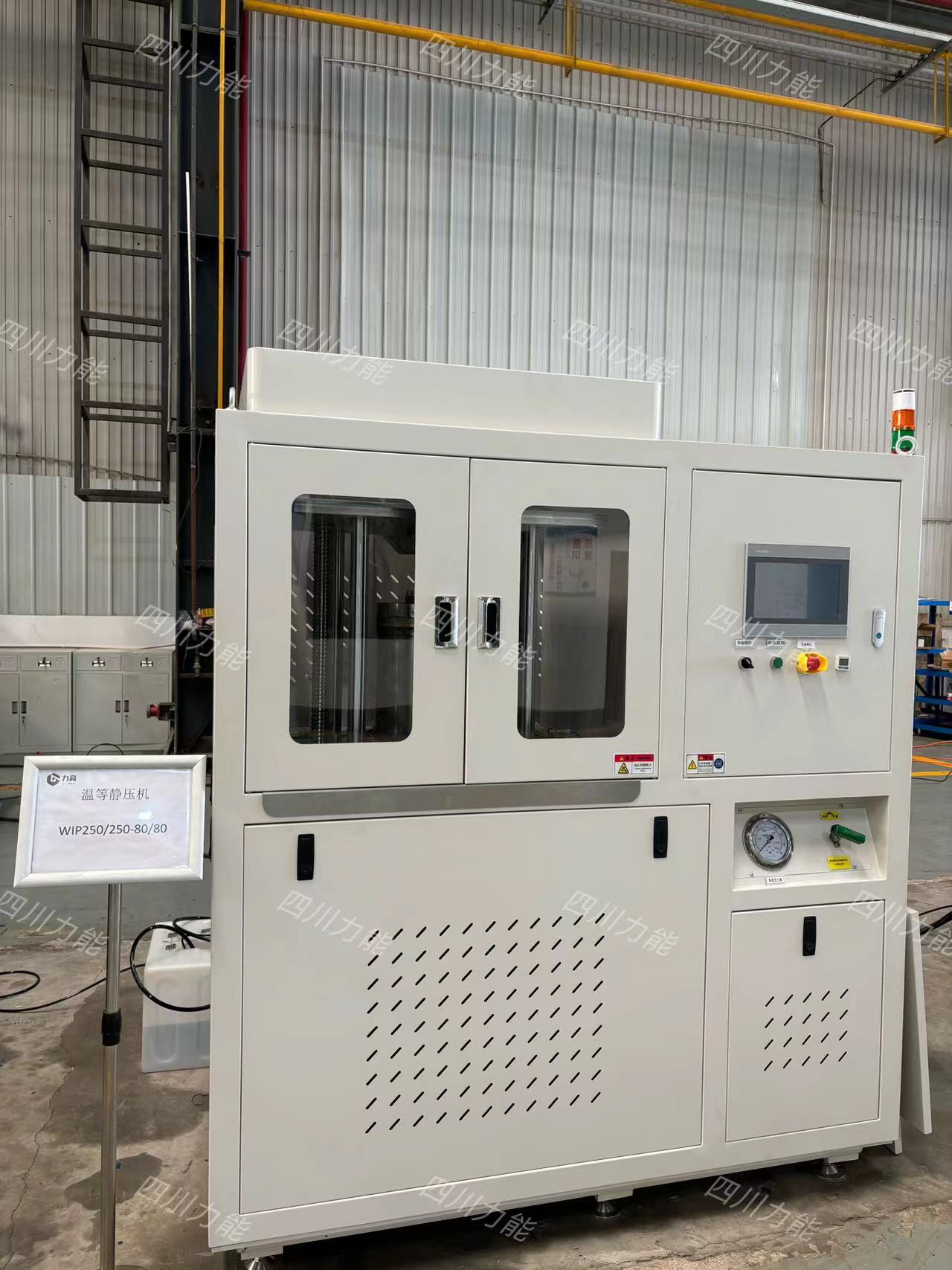

The browser's built-in sharing function is also very useful~WIP250/250-80/80Temperature isostatic press采用厚壁容器结构，主要由芯筒精炼锻造及加工而成的容器、缸盖、缸盖提升机构等组成，具有耐压寿命长、安全系数高等特点。该设备主要应用于石墨材料、电子陶瓷等行业，采用湿袋法成型。
Shandong project
WIP250/250-80/80Temperature isostatic press采用厚壁容器结构，主要由芯筒精炼锻造及加工而成的容器、缸盖、缸盖提升机构等组成，具有耐压寿命长、安全系数高等特点。该设备主要应用于石墨材料、电子陶瓷等行业，采用湿袋法成型。
Working cylinder inner diameter 250 mm
Working cylinder effective height 250 mm
**Work stress 80 MPa
温等用**工作温度 80℃
Temperature control accuracy ±1.5℃
Pressurized to without loading80MPa Time ≤3min
The working medium in the cylinder: Deionized water 12.3L
Installed power 11.5kw
Ground installation area 1.5 ㎡
The weight of the whole machine ≈1.6T
