Brazil Project

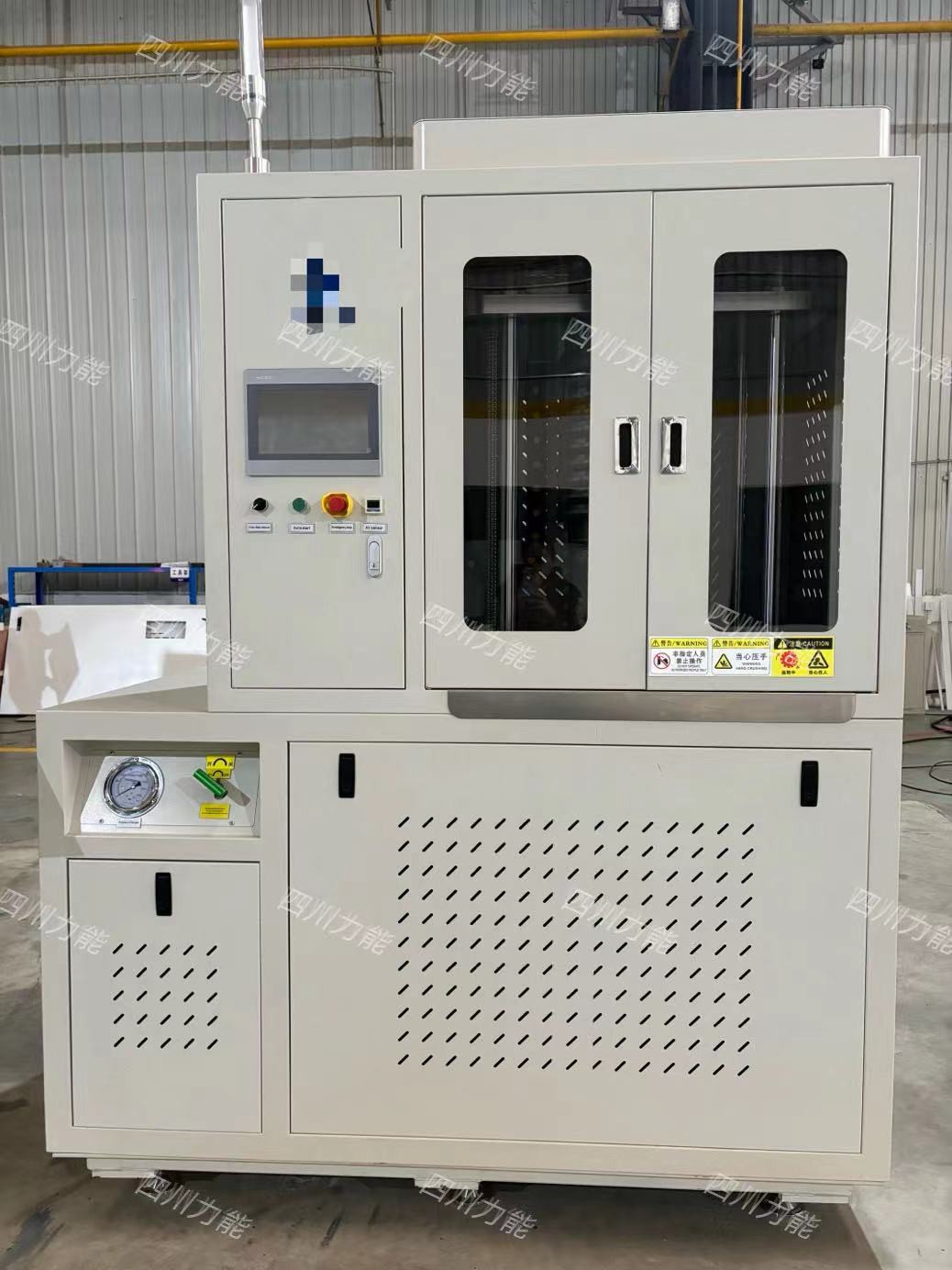

CIP300/300-200S cold isostatic press is a combination of thick-walled cylinder and serrated end cap ultra-high pressure cold isostatic press, which is mainly composed of core cylinder refining, forging and processing container, cylinder head, cylinder head lifting mechanism, etc., with the characteristics of long pressure resistance life and high safety factor. The equipment is mainly used in graphite materials, electronic ceramics and other industries, and is formed using the wet bag method.

parameterDate:2024-04-28

Press information

Date:2024-04-28

Classify:Classic Cases

Source:www.ailineng.com

I know

Brazil Project

Date:2024-04-28

Classify:Classic Cases

Source:www.ailineng.com

Guangdong project

Changzhou Project

Brazil Project Cold isostatic press Main technologiesparameter

Working cylinder inner diameter 300 mm

Working cylinder effective height 300 mm

*High working pressure 200 MPa (common ≤ 170 MPa)

Pressurized to without loading200MPa Time ≤3min

The working medium in the cylinder: tap water+Emulsion(rust inhibitor)22L

Installed power 8.25kw

Ground installation area 2.1875 ㎡

The weight of the whole machine ≈2.8T

Isostatic press manufacturer-Sichuan Lineng Ultra-High Voltage Equipment Co., LtdThe components of the cold isostatic press are introduced

The press is mainly composed of the main engine system and electrical control system composed of container assembly, supercharger, high-pressure valve group, pressure relief valve group, pneumatic control system and lifting system.
